    White / Blue Polyester Mesh Belt For Fiber Board Plants 05902 , 1- 6 Meter

    Ask Lasest Price
    Brand Name : PFM
    Model Number : PFM-Hel
    Certification : SGS,FDA
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union,
    Supply Ability : 2000 square meter per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    White / Blue Polyester Mesh Belt For Fiber Board Plants 05902 , 1- 6 Meter

    White / Blue 05902 Polyester Mesh Belt for Fiber Board Plants


    Features of 05802 Polyester Mesh Dryer Belt:


    Polyester Mesh Dryer Belt has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.


    Application of Polyester Screen Dryer Belt:


    Polyester Screen Dryer Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.


    Polyester Screen Dryer Belt is also used for tailings disposal,colliery,food and medicine.


    Discription of Polyester Monofilament Dryer Screen Belt:


    1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement


    2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.


    3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans

    To make sure extra belt durability,polyester Dryer Screen edge treated with glue and cavans.

    4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.


    Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt


    Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.

    Specifications of Polyester Monofilament Dryer Screen Belt

    Polyester Monofilament Dryer Screen Belt
    Weaving TypeModelThread DiameterDensity(No.s/cm)SrengthAir Permeability
    (mm)(N/cm)(m3/m2h)
    WarpWeftWarpWeft
    2-shed plain weaving fabric58020.750.84.7-54.8-594020000
    5102114.7-5.24.3-5160015000
    67020.70.787160011000
    71020.716.6-74.3-4.6110015000
    85520.550.557.5-88.5-9850850-6500
    94520.450.45108.6160016000
    95020.50.58.5-910-10.575010000
    125020.50.513.58.518006500
    3-shed plain weaving fabric86030.50.6109160014000
    89030.90.97.8-85-5.521007500-8500
    78030.70.888160010000
    203530.30.352214.5120013000
    204030.30.42214.5120013500

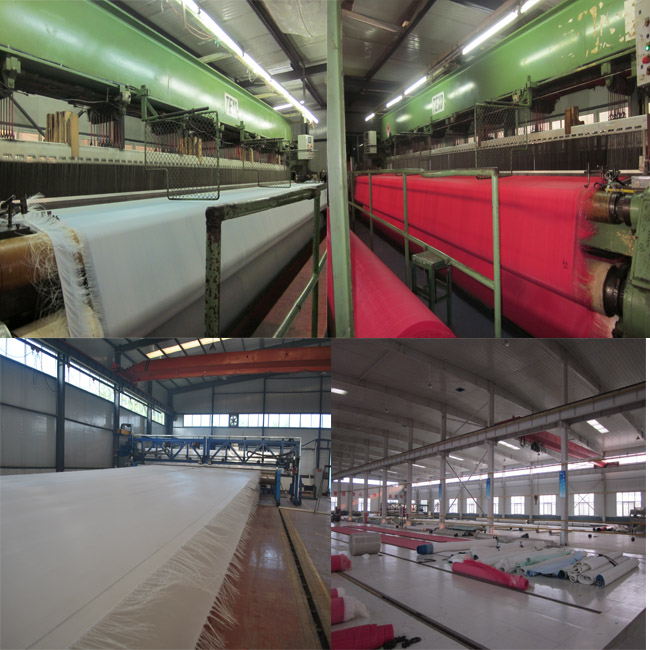

    Texo weaving machine imported from sweden.

    Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

    Advanced programming software completes the controlling,

    Packing and shipping:


    Polyester Plain Weave Belt can be shiped by courier,by air and by sea.


    Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
